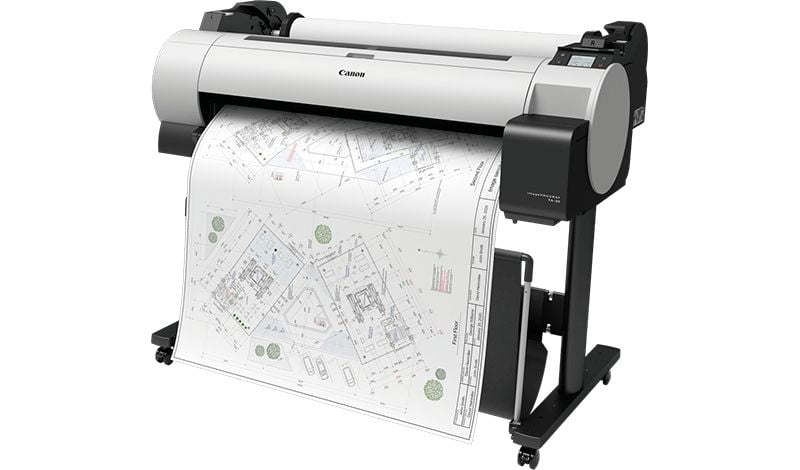

Pictured with optional stand

Canon imagePROGRAF TA-30

Designed to expand printing opportunities and business growth for the entry-level, low-volume customer, the Canon imagePROGRAF TA-30 is ideal for small businesses, schools, architects, engineers, as well as consulting firms. The imagePROGRAF TA-30 comes standard with a 24 months warranty to further support these markets.

24 months warranty
Virtually no printing limits
Air assist print
Comes loaded with more ink

Comes loaded with more ink

Unlike most printers, the TA series comes loaded with a full set of inks, allowing you to assess your usage needs and budget for resupply.

Virtually no printing limits

Print borderless (to paper width) on a huge range of media sizes, requiring no hand trimming. This also has the benefit of maximising the paper roll usage – and minimising waste! The TA-20 and TA-30 are speedy with jobs as well, capable of printing 104 24″ x 36″ posters per hour.

24 months warranty

The included 24 months manufacturer’s warranty against defects even includes the print head, giving you peace of mind that all you’ll need to do is refresh the ink supply and other consumables for continued, uninterrupted printing.

More Compact

The TA-20 and Canon imagePROGRAF TA-30 can be set up against a wall, or even on or next to desks, without a problem. A lower bottom surface and a sleeker profile mean you get to enjoy all the benefits of a great business printer without sacrificing space you may not have.

More Accessible

As you can load paper, replace ink, and clear jams without needing to access the back of the printer, the TA-20 and TA-30 can be installed flush against walls. So, not only do you perform all your operations from the front, your printer also takes up less valuable office real estate. For any small business, that can be a real advantage.

CanonimagePROGRAFTA-20LargeFormatPrinter_1

Air assist print
Sometimes you WANT your printer to suck. The Canon imagePROGRAF TA-30 series keeps paper flat and stationary by vacuuming it flat to the platen, giving you cleaner and crisper prints as it keep the distance between the print head and media constant – no rubbing!

5-colour LUCIA TD pigment ink
This offers high-quality, low-cost printing on plain paper for posters or drawings, and produces vibrant colours. As it can provide matte black ink with a higher surface tension than earlier models, the print quality is denser, with better-defined edges. As a result, you can print high-precision drawings with fine lines and sharp text very economically. Furthermore, as pigments are kept closer to the surface through the process, the colours are simply more vibrant. Even on inexpensive inkjet plain paper the colours tend to stand out more. In fact, you may even be able to consider saving money through in-house printing on work you previously had to outsource.

Canon Brochure TA-20/30

Technical Specifications

PRINTERS
24″ TA-20
36″ TA-30

PRINT HEAD
PF-06

TECHNOLOGY
FINE (Photolithography Inkjet Nozzle Engineering)

PRINT RESOLUTION (MAX.)
2400 x 1200 dpi

NUMBER OF NOZZLES
Matte Black: 5,120 Nozzles
Other Colours: 2,560 Nozzles per Colour

INK TYPE
Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

INK TANK
Shipped with Printer: BK, C, M, Y (55 ml), 2 x MBK
(2 x 55 ml, Total 110 ml)
Replacement: PFI-030 (55 ml)

NOZZLE RECOVERY SYSTEM
Non-firing Nozzle Detection and Compensation

PRINTER CONTROLLER
L-COA PRO

PRINTER RAM
2 GB

MEDIA FEED
Roll Feed: One Roll, Top-loading, Front Output

CUT SHEET
Top-loading, Front Output (Manual feed using media
locking lever)

MEDIA WIDTH
TA-20: 8″–24″ (203 mm – 610 mm)
TA-30: 8″–36″ (203 mm – 914 mm)

PRINTABLE MARGINS
Roll Feed: All Sides: 3 mm or 0″ for Borderless

CUT SHEET
Top: 3 mm, Bottom: 20 mm, Side: 3 mm

MAXIMUM PRINT LENGTH (SINGLE PAGE)1
Roll Feed: 18 m
Cut Sheet: 594 mm

SIZE/WEIGHT (WxDxH)
TA-20 (Without Stand):
982 x 748 x 438 mm; Approx. 37 kg
TA-30 (With Stand, Basket Open):
1,289 x 870 x 1,059 mm; Approx. 53 kg

OPTIONS
TA-20 2″/3″ Roll Holder Set (RH2-28)
TA-30 2″/3″ Roll Holder Set (RH2-35)
PosterArtist
TA-20 Stand (SD-24)
User Replaceable Items:
Ink Tank (PFI-030)
Print Head (PF-06)
Maintenance Cartridge (MC-31)
Cutter Blade (CT-08)
1 The maximum printable length varies depending on the
application, OS, and RIP used.
